Waveguide Low Power Termination WR10-WR2300

Place of Origin : China

Brand Name : CWJ

Certification : ISO9001

Price : Negotiation

Packaging Details : Wooden case or with outer carton, or as per customers' specific requirements.

Payment Terms : T/T; L/C

Supply Ability : 100 Piece/Pieces per month

Model Number : WL

MOQ : 5PCS

Delivery Time : 20-30 work days

Contact Now

CWJ's standard product line of low power terminations utilizes precision conical load elements for optimum electrical performance. This series of terminations is designed for low power input. VSWR is less than 1.05 over the full waveguide bandwidth.

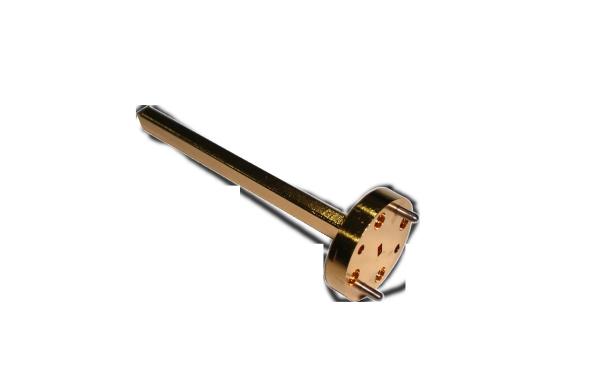

Waveguide Low Power Termination WR10-WR2300

Waveguide Low Power Termination Product Range
MODEL NO	FREQ RANGE	VS WR	AVG POWER	LENGTH (L)	WG TYPE (IEC/EIA)	FLANGE TYPE	MATERIAL	PDF Datasheet
MODEL NO	(GHz)	Max	(W)	(mm)	WG TYPE (IEC/EIA)	FLANGE TYPE	MATERIAL	PDF Datasheet
CWJ3WL1.05PA	0.32-0.49	1.05	25	2005	R3/WR2300	FDP/FDM	Al
CWJ9WL1.03PA	0.75-1.15	1.03	25	660	R9/WR975	FDP/FDM	Al
CWJ12WL1.03PA	0.96-1.46	1.05	25	680	R12/WR770	FDP/FDM	Al
CWJ14WL1.03PA	1.13-1.73	1.03	25	570	R14/WR650	FDP/FDM	Al
CWJ18WL1.03PA	1.45-2.20	1.05	20	550	R18/WR510	FDP/FDM	Al/Cu
CWJ22WL1.03PA	1.72-2.61	1.03	20	470	R22/WR430	FDP/FDM	Al/Cu
CWJ26WL1.03PA	2.17-3.30	1.03	2	350	R26/WR340	FDP/FDM	Al/Cu
CWJ32WL1.03PA	2.60-3.95	1.03	2	278	R32/WR284	FDP/FDM	Al/Cu
CWJ40WL1.03PA	3.22-4.90	1.03	2	275	R40/WR229	FDP/FDM	Al/Cu
CWJ48WL1.03PC	3.94-5.99	1.03	2	170	R48/WR187	FDP/FDM	Al/Cu
CWJ58WL1.03PC	4.64-7.05	1.03	2	135	R58/WR159	FDP/FDM	Al/Cu
CWJ70WL1.03PC	5.38-8.17	1.03	2	180	R70/WR137	FDP/FDM	Al/Cu
CWJ84WL1.03PC	6.57-9.99	1.03	2	150	R84/WR112	FBP/FBM/FBE	Al/Cu
CWJ100WL1.03PC	8.20-12.50	1.03	2	130	R100/WR90	FBP/FBM/FBE	Al/Cu
CWJ120WL1.03PC	9.84-15.0	1.03	2	110	R120/WR75	FBP/FBM/FBE	Al/Cu
CWJ140WL1.03PC	11.9-18.0	1.03	2	90	R140/WR62	FBP/FBM/FBE	Al/Cu
CWJ180WL1.03PC	14.5-22.0	1.03	2	75	R180/WR51	FBP/FBM/FBE	Al/Cu
CWJ220WL1.03PC	17.6-26.7	1.03	0.5	85	R220/WR42	FBP/FBM/FBE	Al/Cu
CWJ260WL1.03PC	21.7-33.0	1.03	0.5	55	R260/WR34	FBP/FBM/FBE	Al/Cu
CWJ320WL1.03PC	26.3-40.0	1.03	0.5	40	R320/WR28	FBP/FBM/FBE	Al/Cu
CWJ400WL1.10PC	32.9-50.1	1.1	0.5	40	R400/WR22	FUGP	Cu
CWJ500WL1.15PC	39.2-59.6	1.15	0.5	40	R500/WR19	FUGP	Cu
CWJ620WL1.15PC	49.8-75.8	1.15	0.5	38	R620/WR15	FUGP	Cu
CWJ740WL1.15PC	60.5-91.9	1.15	0.5	30	R740/WR12	FUGP	Cu
CWJ900WL1.15PC	73.8-112	1.15	0.5	30	R900/WR10	FUGP	Cu
